From models to reliable technical deliverables.

We produce plans, sections, elevations, sheets, details, quantities and data outputs from coordinated, properly structured BIM models to support design, construction and decision-making.

Model-based production is about more than generating drawings. It requires controlled management of the relationship between geometry, information and documentation.

One model, multiple technical uses

A properly structured BIM model can serve as a shared data source for plans, sections, elevations, sheets, details, quantities, data exchange and coordination deliverables.

Reliable deliverables depend on the quality of model geometry and information.

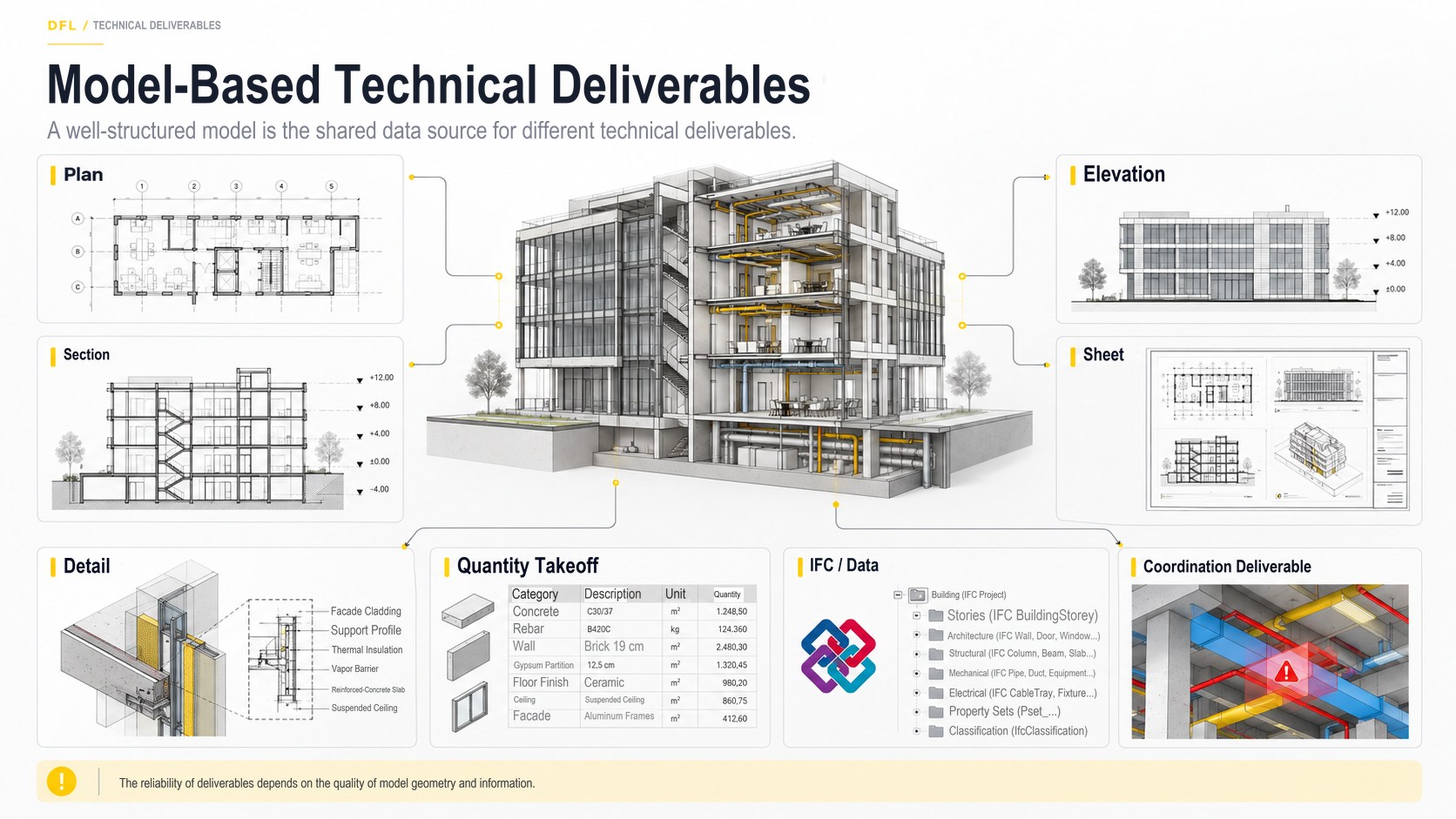

Plans, sections, elevations, sheets, details, quantities, IFC/data and coordination outputs linked to a BIM model. — View full size ↗

A ready model does not mean ready sheets.

The model provides the foundation for technical documentation. View preparation, graphic settings, annotation, sheet organization and QA must still be managed separately.

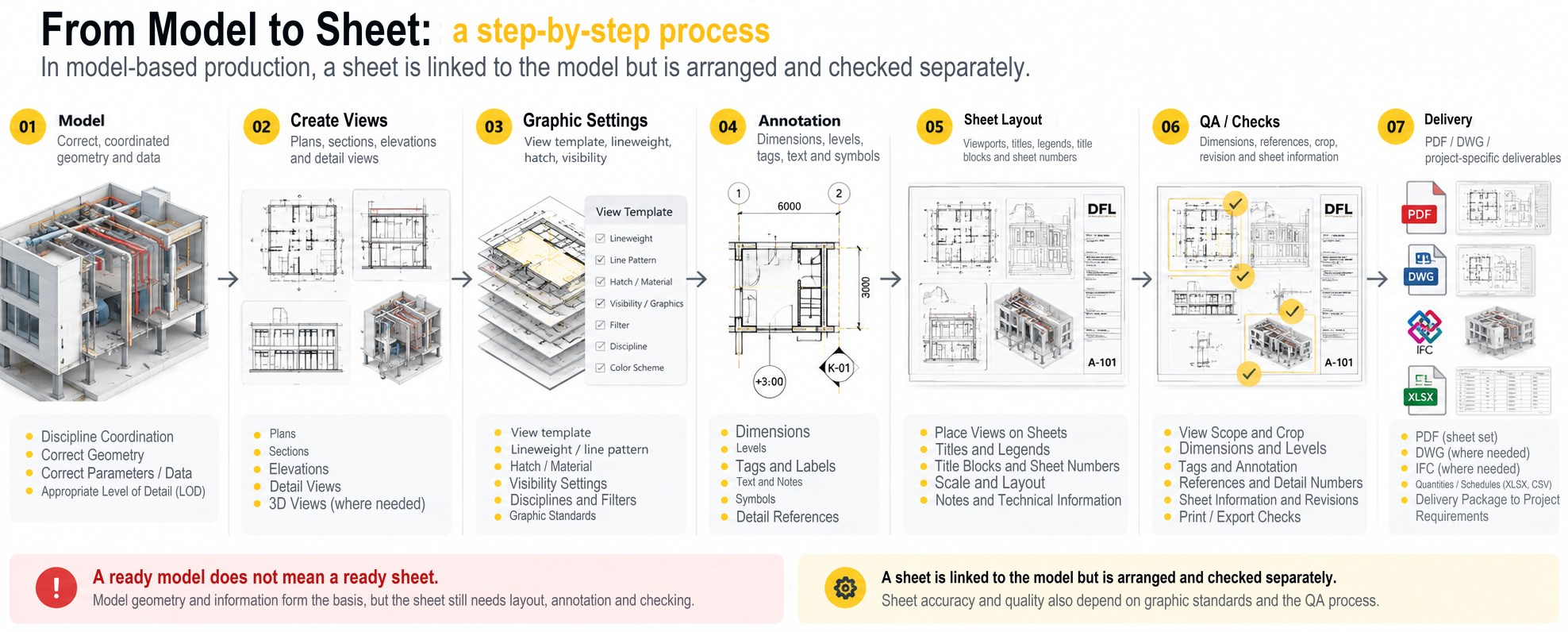

From model to delivery: view creation, graphic settings, annotation, sheet layout and QA. — View full size ↗

01Model
02Create views
03Graphic settings
04Annotation
05Sheet layout
06QA / review
07Delivery

Model-based production does not eliminate 2D documentation.

Plans, sections, elevations and sheets remain essential tools for communicating a project. The difference is that these outputs are produced in relation to the model rather than drawn independently.

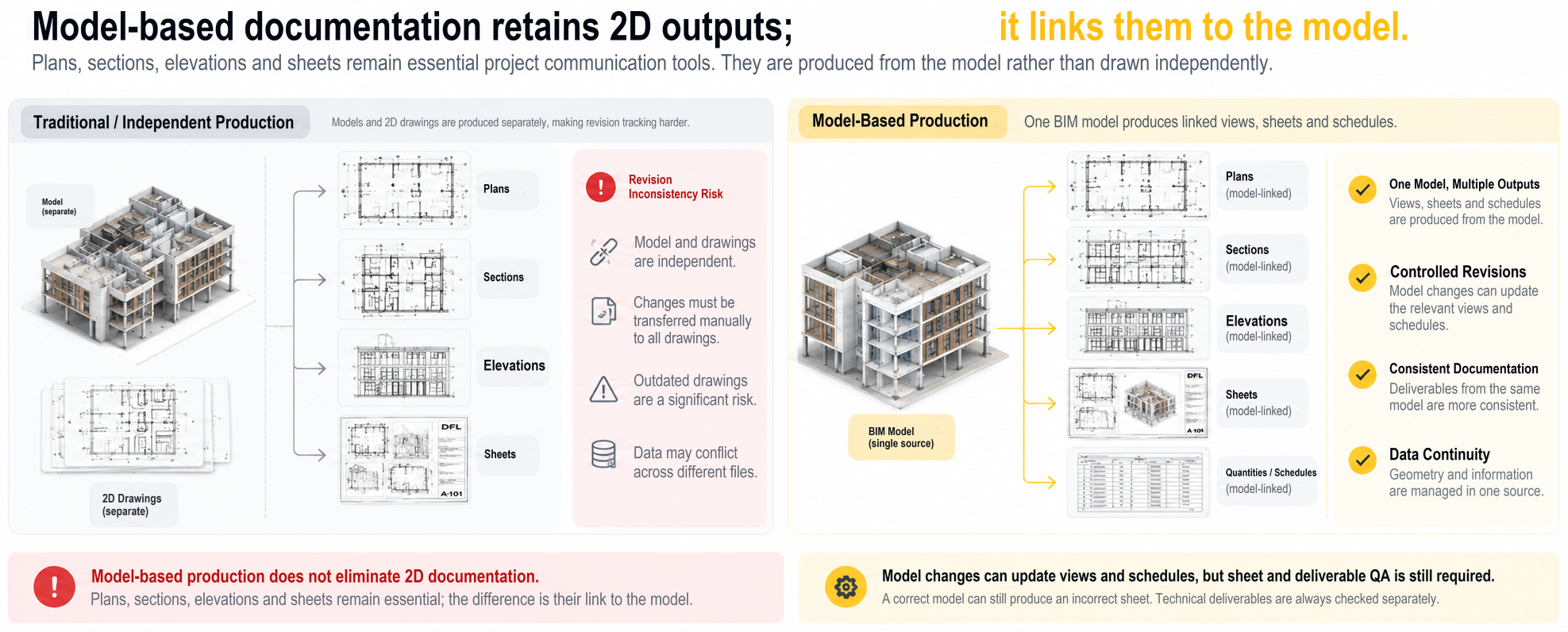

Independent drawings and model-linked 2D documentation, with output checks after model changes. — View full size ↗

Model changes may be reflected in associated views and schedules, but sheet and deliverable QA is still required.

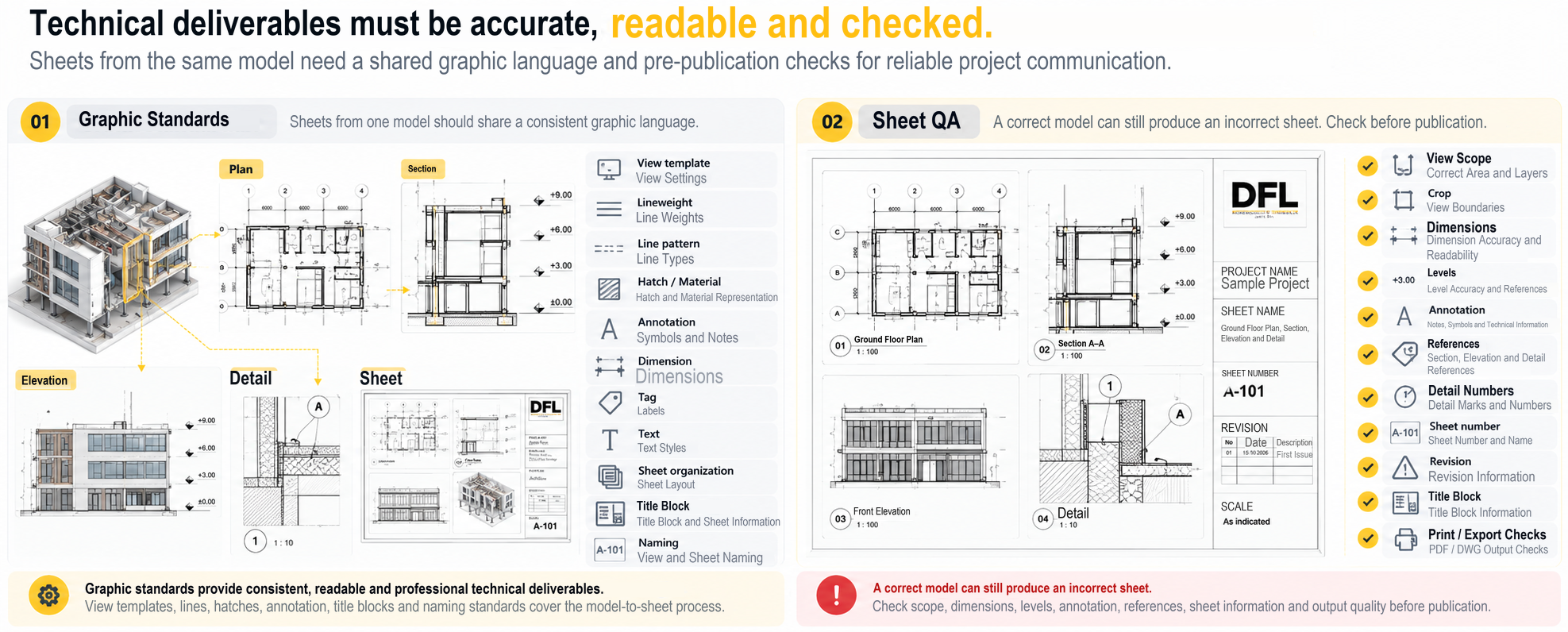

Technical deliverables must be accurate, readable and controlled.

Graphic standards

View templates
Lineweights
Line patterns
Hatches / materials
Annotation
Dimensions
Tags
Text
Sheet organization
Title blocks
Naming

Sheet QA

View scope
Crop boundaries
Dimensions
Levels
Annotation
References
Detail numbers
Sheet numbers
Revisions
Title blocks
Print / export checks

An accurate model can still produce an incorrect sheet.

Quantity takeoff relies on the data in the model.

A model with appropriate categories, geometry, parameters and classification provides the basis for reliable quantity schedules and takeoff outputs.

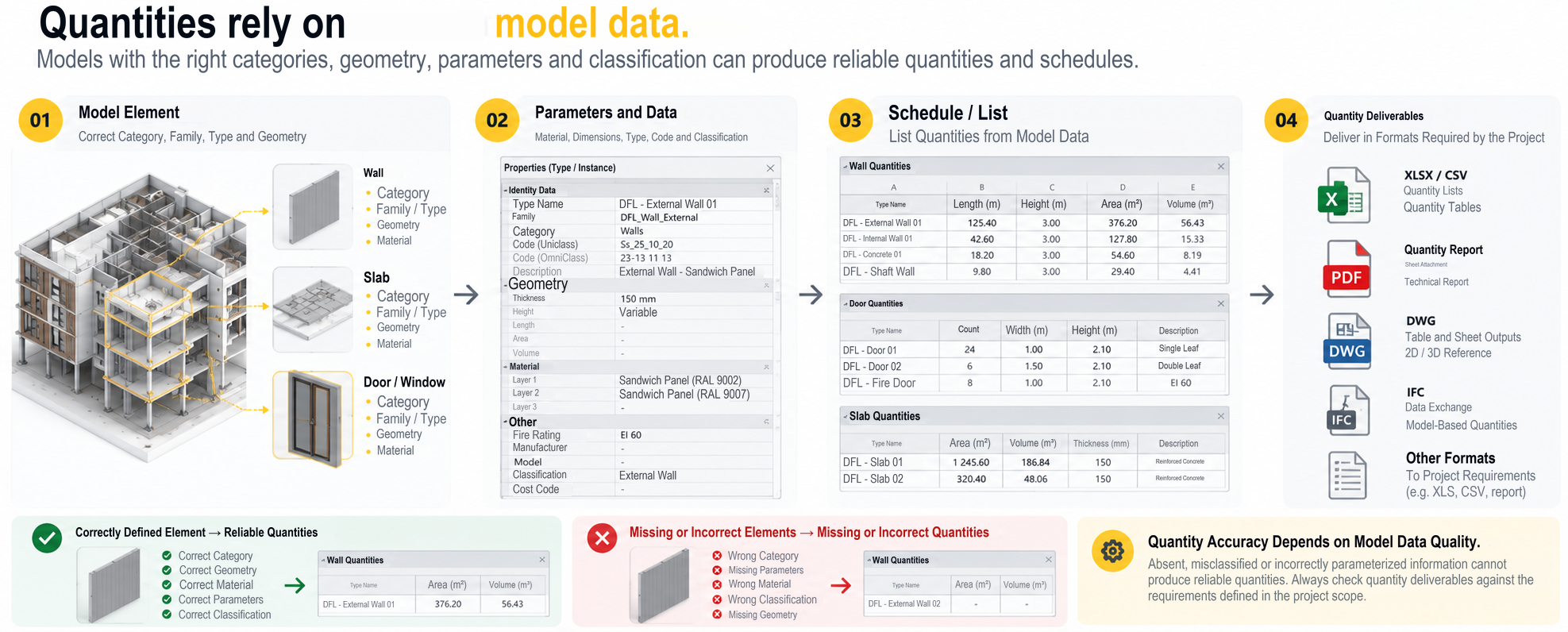

Data flow from model elements through parameters and schedules to quantities, with classification and data checks. — View full size ↗

01Model element
02Parameters and data
03Schedule / list
04Quantity takeoff

Missing, misclassified or incorrectly parameterized information cannot produce reliable quantities.

Model changes can update associated deliverables.

Controlled model changes may be reflected in associated views, sheets and schedules. Documentation and delivery QA must still be completed after each revision.

01Model revision
02Associated views
03Sheets / schedules
04QA
05Reissue

Types of technical deliverables

Plans / sections / elevations
Sheet sets
Technical details
Coordination views
Issue / report attachments

Quantity schedules / takeoff
IFC / data exchange
DWG
PDF
XLSX / CSV

Deliverables are defined by the project scope, intended use and employer requirements.

Not every detail is generated automatically.

Not every technical detail is generated automatically from the model. Depending on design and construction requirements, some details may be completed through model-supported 2D documentation.

Software and formats

Software

Autodesk Revit
AutoCAD
Navisworks
Autodesk Construction Cloud

Formats

RVT
IFC
DWG
PDF
XLSX / CSV
NWC / NWD where required
